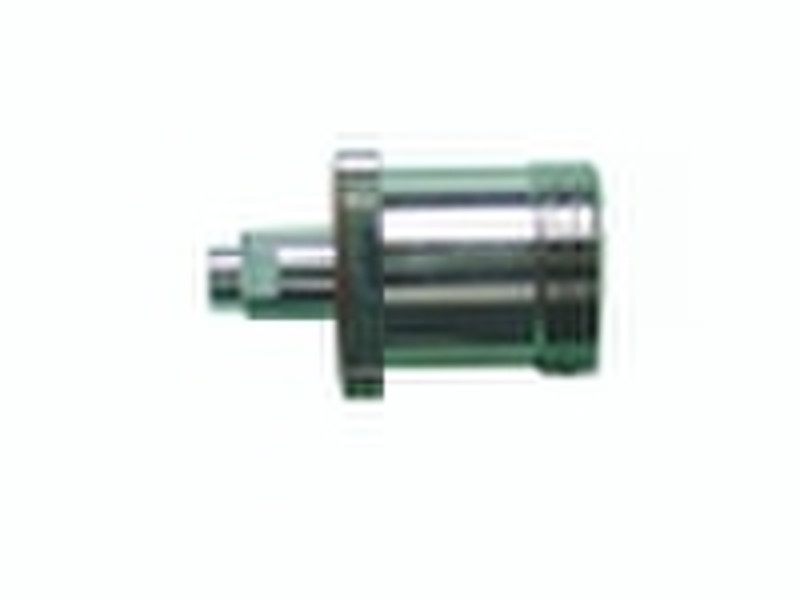

RF Coaxial Connector
Jane Xu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | Huacan |
| Model Number | DIN 7/16-KF250 |
RF coaxial connector,DIN 7/16-KF250,is manufactured by our company in conformity with the related specification of IEC 169-4. Temperature range: -45-+85 Vibration: 150m/s²(10-500Hz) Impact: 500 m/s² Frequency range: 7.5 GHz Characteristic Impedance: 50Ω Retention: Inner conductor≥6N Contact Resistance: Inner conductor≤5m Ω Outer conductor≤2.5 m Ω Insulation Resistance: ≥10000M Ω Voltage Proof: 4000V VSWR: Straight style≤1.5 Angle style≤1.2 Shield efficiency: 128dBmin(At0-1GHz) Durability:≥1000 cycles Applicable standards: IEC169-4
