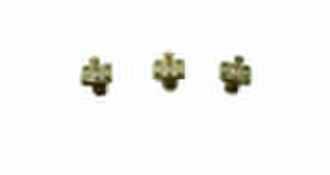

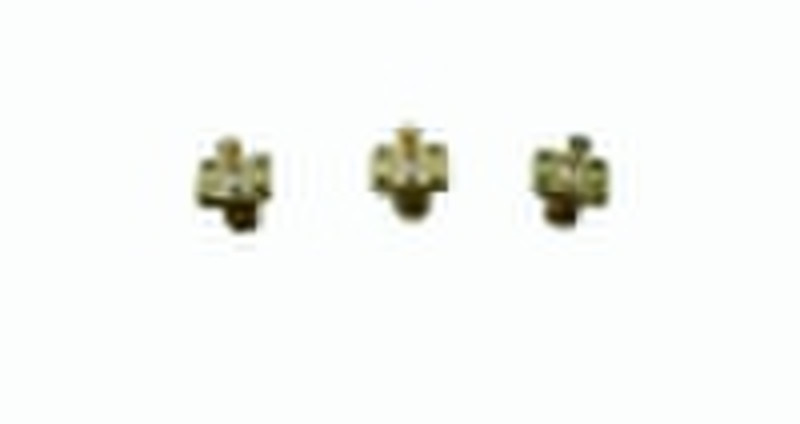

RF Coaxial Connector
Jane Xu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Model Number | SMA-KFD57 |
Series SMA RF coaxial connectors are most widely used ones. They have the advantages of wide frequency range, excellent electrical performances and high reliability. Temperature range: -55-+155 PE -40-+85 Vibration: 150m/s²(10-2000Hz) Impact: 500 m/s² Frequency range: 0-12.4 GHz Characteristic Impedance: 50Ω Retention: Inner conductor≥0.28N Contact Resistance: Inner conductor≤5m Ω Outer conductor≤2.5 m Ω Insulation Resistance: ≥5000M Ω Voltage Proof: 1000V ;1500V; 750V; 500V Shield Efficiency: 60dBmin(At2-3GHz) Applicable Standards: SJ/T11073-96 IEC169-15 MIL-C-39012
